B82442T1565J000

TDK EPCOS
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionFIXED IND 5.6MH 66MA 54.7 OHM
  • CategoryFixed Inductors
  • ECAD Model
  • Share
In Stock: 159

Can ship immediately

Pricing:
  • 1$0.63184

Quote It

Technical Details

  • Series:SIMID
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Type:Wirewound
  • Material - Core:Ferrite
  • Inductance:5.6 mH
  • Tolerance:±5%
  • Current Rating (Amps):66 mA
  • Current - Saturation (Isat):135mA
  • Shielding:Unshielded
  • DC Resistance (DCR):54.7Ohm Max



  • Q @ Freq:30 @ 252kHz
  • Frequency - Self Resonant:800kHz
  • Ratings:AEC-Q200
  • Operating Temperature:-55°C ~ 150°C
  • Inductance Frequency - Test:252 kHz
  • Features:-
  • Mounting Type:Surface Mount
  • Package / Case:2-SMD, J-Lead
  • Supplier Device Package:-
  • Size / Dimension:0.220" L x 0.197" W (5.60mm x 5.00mm)
  • Height - Seated (Max):0.209" (5.30mm)

Related Products


B82442T1225J000

FIXED IND 2.2MH 100MA 22.5 OHM

  • 1: $0.63184

B82442T1185J000

FIXED IND 1.8MH 110MA 19.7 OHM

  • 1: $0.63184

B82442T1475J000

FIXED IND 4.7MH 73MA 48.6 OHM

  • 1: $0.63184

B82442T1275J000

FIXED IND 2.7MH 90MA 29.5 OHM

  • 1: $0.63184

B82442T1155J000

FIXED IND 1.5MH 130MA 14.9 OHM

  • 1: $0.63184

B82442T1335J000

FIXED IND 3.3MH 85MA 32.8 OHM

  • 1: $0.63184

B82442T1125J000

FIXED IND 1.2MH 140MA 12.6 OHM

  • 1: $0.63184

B82442T1106J000

FIXED IND 10MH 46MA 112 OHM SMD

  • 1: $0.63184

CR75NP-1R0MC

FIXED IND 1UH 6A 15.6 MOHM SMD

CR75NP-1R0MC Datasheet
  • 1: $0.57600
  • 1000: $0.57600

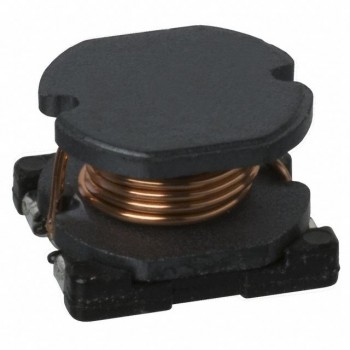

CR75NP-1R8MC
