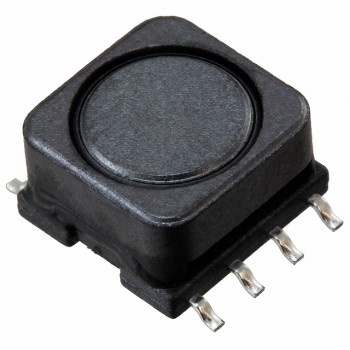

SRR0906-2R7ML
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 2.7UH 3.2A 32 MOHM SMD
- CategoryFixed Inductors
- Datasheet SRR0906-2R7ML Datasheet
-
ECAD Model
- Share
In Stock: 112
Can ship immediately
Pricing:
- 1$0.5808
- 1,200$0.5445
Quote It
Technical Details
- Series:SRR0906
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:2.7 µH
- Tolerance:±20%
- Current Rating (Amps):3.2 A
- Current - Saturation (Isat):5.8A
- Shielding:Shielded
- DC Resistance (DCR):32mOhm Max
- Q @ Freq:23 @ 7.96MHz
- Frequency - Self Resonant:85MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:1 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:8-SMD, Gull Wing
- Supplier Device Package:-
- Size / Dimension:0.394" L x 0.374" W (10.00mm x 9.50mm)
- Height - Seated (Max):0.248" (6.30mm)
