IHLP3232CZER1R5M01
Vishay / Dale
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 1.5UH 11A 13.3 MOHM
- CategoryFixed Inductors
- Datasheet IHLP3232CZER1R5M01 Datasheet
-
ECAD Model
- Share
In Stock: 145
Can ship immediately
Pricing:
- 1$0.624
- 1,000$0.624
- 3,000$0.6045
- 5,000$0.585
- 10,000$0.5655
Quote It
Technical Details
- Series:IHLP-3232CZ-01
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Molded
- Material - Core:-
- Inductance:1.5 µH
- Tolerance:±20%
- Current Rating (Amps):11 A
- Current - Saturation (Isat):24A
- Shielding:Shielded
- DC Resistance (DCR):13.3mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:42MHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.340" L x 0.322" W (8.64mm x 8.18mm)
- Height - Seated (Max):0.118" (3.00mm)
Related Products
FIXED IND 820NH 18.5A 4.87 MOHM
IHLP3232CZERR82M11 Datasheet- 1: $0.62400
- 1000: $0.60800
- 3000: $0.58900
FIXED IND 2.2UH 9A 20.3 MOHM SMD
IHLP3232CZER2R2M01 Datasheet- 1: $0.62400
- 1000: $0.62400
- 3000: $0.60450

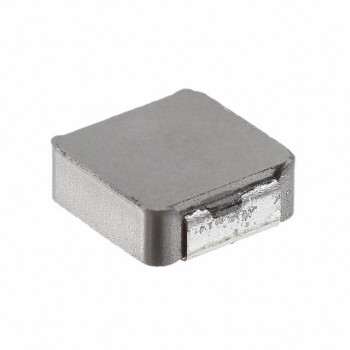

FIXED IND 1UH 16A 6.49 MOHM SMD
