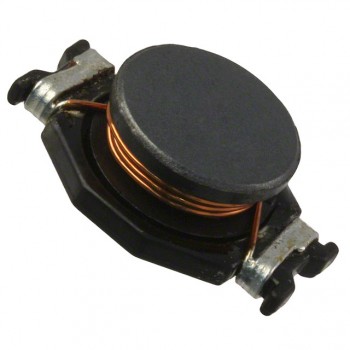

SDR2207-R78ML
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 780NH 15A 2.6 MOHM SMD
- CategoryFixed Inductors
- Datasheet SDR2207-R78ML Datasheet
-
ECAD Model
- Share
In Stock: 101
Can ship immediately
Pricing:
- 1$0.693
- 250$0.693
Quote It
Technical Details
- Series:SDR2207
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:780 nH
- Tolerance:±20%
- Current Rating (Amps):15 A
- Current - Saturation (Isat):30A
- Shielding:Unshielded
- DC Resistance (DCR):2.6mOhm Max
- Q @ Freq:30 @ 5MHz
- Frequency - Self Resonant:104MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.866" L x 0.591" W (22.00mm x 15.00mm)
- Height - Seated (Max):0.307" (7.80mm)
