SDR2207-2R2ML
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 2.2UH 13A 7.5 MOHM SMD
- CategoryFixed Inductors
- Datasheet SDR2207-2R2ML Datasheet
-
ECAD Model
- Share
In Stock: 127
Can ship immediately
Pricing:
- 1$0.693
- 250$0.62476
- 500$0.5355
- 750$0.50575
- 1,250$0.476
- 2,500$0.4655
Quote It
Technical Details
- Series:SDR2207
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:2.2 µH
- Tolerance:±20%
- Current Rating (Amps):13 A
- Current - Saturation (Isat):20A
- Shielding:Unshielded
- DC Resistance (DCR):7.5mOhm Max
- Q @ Freq:35 @ 3MHz
- Frequency - Self Resonant:51MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.866" L x 0.591" W (22.00mm x 15.00mm)
- Height - Seated (Max):0.307" (7.80mm)
Related Products
FIXED IND 190NH 36A 0.9MOHM SMD
- 1: $0.67323
FIXED IND 200NH 35A 1MOHM SMD
- 1: $0.67323
FIXED IND 3.3UH 11A 11.8 MOHM
- 1: $0.67323
FIXED IND 10UH 1.37A 180 MOHM

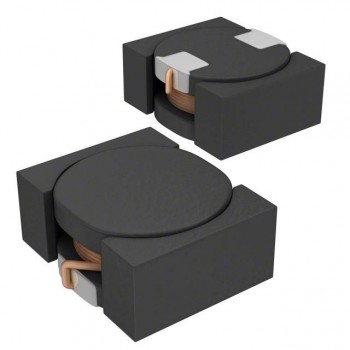

VLF302515MT-100M-CA Datasheet- 1: $0.69376
