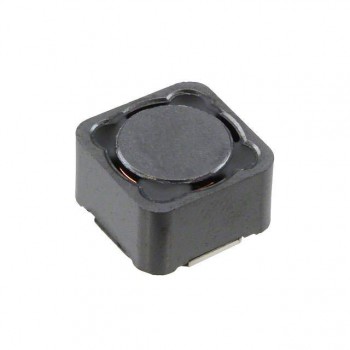

PM127SH-181M-RC

Technical Details

• Series:PM127SH
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:Wirewound
• Material - Core:Ferrite
• Inductance:180 µH
• Tolerance:±20%
• Current Rating (Amps):1.7 A
• Current - Saturation (Isat):1.8A
• Shielding:Shielded
• DC Resistance (DCR):300mOhm Max

• Q @ Freq:24 @ 796kHz
• Frequency - Self Resonant:4MHz
• Ratings:-
• Operating Temperature:-40°C ~ 125°C
• Inductance Frequency - Test:100 kHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:Nonstandard
• Supplier Device Package:-
• Size / Dimension:0.492" L x 0.492" W (12.50mm x 12.50mm)
• Height - Seated (Max):0.315" (8.00mm)
