IHLP4040DZER2R2M51
Vishay / Dale
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 2.2UH 12.5A 9.1 MOHM
- CategoryFixed Inductors
- Datasheet IHLP4040DZER2R2M51 Datasheet
-
ECAD Model
- Share
In Stock: 103
Can ship immediately
Pricing:
- 1$0.756
- 500$0.756
- 1,000$0.672
- 2,500$0.651
- 5,000$0.63
- 12,500$0.609
Quote It
Technical Details
- Series:IHLP-4040DZ-51
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Molded
- Material - Core:-
- Inductance:2.2 µH
- Tolerance:±20%
- Current Rating (Amps):12.5 A
- Current - Saturation (Isat):12.5A
- Shielding:Shielded
- DC Resistance (DCR):9.1mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:30.1MHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:4040
- Size / Dimension:0.425" L x 0.400" W (10.80mm x 10.16mm)
- Height - Seated (Max):0.157" (4.00mm)
Related Products

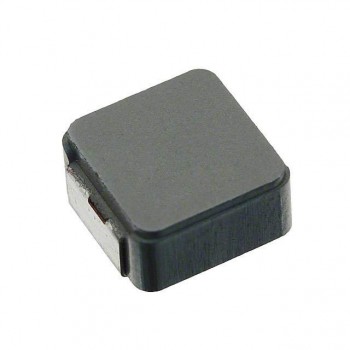

FIXED IND 3.3UH 11.3A 16.48 MOHM
