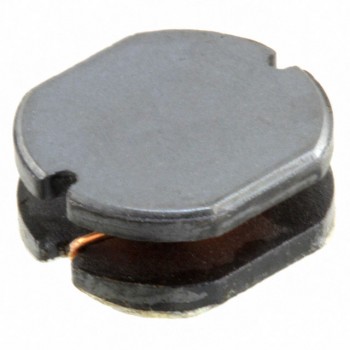

CD104NP-151KC
Sumida Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 150UH 610MA 544 MOHM
- CategoryFixed Inductors
- Datasheet CD104NP-151KC Datasheet
-
ECAD Model
- Share
In Stock: 155
Can ship immediately
Pricing:
- 1$0.7568
- 1,000$0.7568
Quote It
Technical Details
- Series:CD104
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:-
- Material - Core:-
- Inductance:150 µH
- Tolerance:±10%
- Current Rating (Amps):610 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):544mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:7.29MHz
- Ratings:-
- Operating Temperature:-40°C ~ 100°C
- Inductance Frequency - Test:1 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.394" L x 0.354" W (10.00mm x 9.00mm)
- Height - Seated (Max):0.177" (4.50mm)
