#B953AS-3R9N=P3
TOKO / Murata
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 3.9UH 6A 14 MOHM SMD
- CategoryFixed Inductors
- Datasheet #B953AS-3R9N=P3 Datasheet
-
ECAD Model
- Share
In Stock: 151
Can ship immediately
Pricing:
- 1$0.76806
- 500$0.76806
- 1,000$0.68272
- 2,500$0.66138
- 5,000$0.64005
- 12,500$0.61872
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:3.9 µH
- Tolerance:±30%
- Current Rating (Amps):6 A
- Current - Saturation (Isat):7.9A
- Shielding:Shielded
- DC Resistance (DCR):14mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 85°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.504" L x 0.504" W (12.80mm x 12.80mm)
- Height - Seated (Max):0.268" (6.80mm)
Related Products
FIXED INDUCTOR 100NH
- 1: $0.76840
- 950: $0.76840
FIXED IND 10UH 1.07A 280 MOHM
VLF403212MT-100M-CA Datasheet- 1: $0.77088
- 1000: $ 0.77088
- 3000: $0.74679

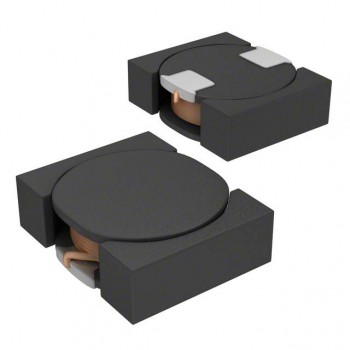

FIXED IND 15UH 870MA 420 MOHM
