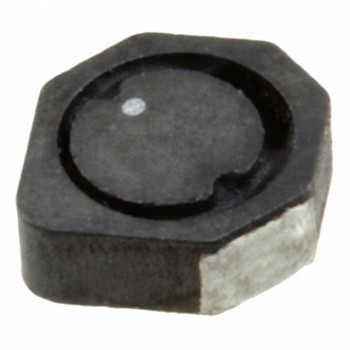

SD3112-1R0-R

Technical Details

• Series:SD3112
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:Wirewound
• Material - Core:Ferrite
• Inductance:1 µH
• Tolerance:±30%
• Current Rating (Amps):1.39 A
• Current - Saturation (Isat):1.65A
• Shielding:Shielded
• DC Resistance (DCR):69mOhm

• Q @ Freq:-
• Frequency - Self Resonant:-
• Ratings:-
• Operating Temperature:-40°C ~ 125°C
• Inductance Frequency - Test:100 kHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:Nonstandard
• Supplier Device Package:-
• Size / Dimension:0.122" L x 0.122" W (3.10mm x 3.10mm)
• Height - Seated (Max):0.047" (1.20mm)
