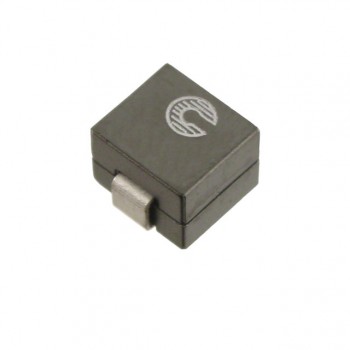

FP0705R1-R18-R
PowerStor (Eaton)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 180NH 43A 0.25 MOHM
- CategoryFixed Inductors
- Datasheet FP0705R1-R18-R Datasheet
-
ECAD Model
- Share
In Stock: 102
Can ship immediately
Pricing:
- 1$0.8364
- 950$0.8364
Quote It
Technical Details
- Series:FLAT-PAC, FP0705
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:180 nH
- Tolerance:±10%
- Current Rating (Amps):43 A
- Current - Saturation (Isat):25A
- Shielding:Unshielded
- DC Resistance (DCR):0.25mOhm
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.276" L x 0.276" W (7.00mm x 7.00mm)
- Height - Seated (Max):0.195" (4.95mm)
