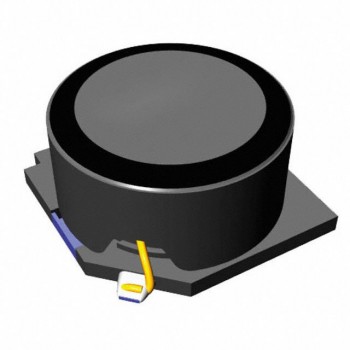

NS12565T7R0NNV
TAIYO YUDEN
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 7UH 5.21A 19.5MOHM SMD
- CategoryFixed Inductors
- Datasheet NS12565T7R0NNV Datasheet
-
ECAD Model
- Share
In Stock: 174
Can ship immediately
Pricing:
- 1$0.8525
- 2,000$0.8525
Quote It
Technical Details
- Series:NS
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:7 µH
- Tolerance:±30%
- Current Rating (Amps):5.21 A
- Current - Saturation (Isat):7.8A
- Shielding:Shielded
- DC Resistance (DCR):19.5mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:24.6MHz
- Ratings:AEC-Q200
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.492" L x 0.492" W (12.50mm x 12.50mm)
- Height - Seated (Max):0.270" (6.85mm)
