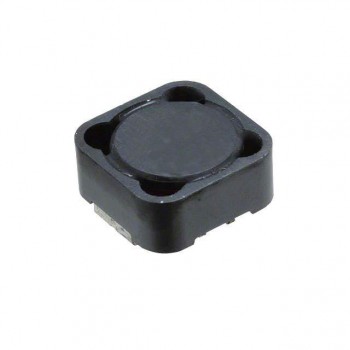

P1171.473NLT
PulseLarsen Antenna
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 47UH 2.2A 100 MOHM SMD
- CategoryFixed Inductors
- Datasheet P1171.473NLT Datasheet
-
ECAD Model
- Share
In Stock: 112
Can ship immediately
Pricing:
- 1$0.8835
- 2,000$0.8835
Quote It
Technical Details
- Series:P1171NL
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Wirewound
- Material - Core:-
- Inductance:47 µH
- Tolerance:±20%
- Current Rating (Amps):2.2 A
- Current - Saturation (Isat):2.2A
- Shielding:Shielded
- DC Resistance (DCR):100mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:9MHz
- Ratings:-
- Operating Temperature:-40°C ~ 130°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.482" L x 0.482" W (12.24mm x 12.24mm)
- Height - Seated (Max):0.236" (6.00mm)
