AX02-301R0
Triad Magnetics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 1UH 23A 1.7 MOHM SMD
- CategoryFixed Inductors
- Datasheet AX02-301R0 Datasheet
-
ECAD Model
- Share
In Stock: 138
Can ship immediately
Pricing:
- 1$1.08
- 480$1.07263
Quote It
Technical Details
- Series:AX02
- Package:Box
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:1 µH
- Tolerance:±20%
- Current Rating (Amps):23 A
- Current - Saturation (Isat):34A
- Shielding:Shielded
- DC Resistance (DCR):1.7mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 85°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:2-SMD, J-Lead
- Supplier Device Package:SMD
- Size / Dimension:0.524" L x 0.591" W (13.30mm x 15.00mm)
- Height - Seated (Max):0.256" (6.50mm)
Related Products
FIXED IND 100NH 18A 2.42 MOHM
- 1: $1.18800
- 3000: $1.18800
FIXED IND 1.5UH 7.6A 23.5 MOHM
- 1: $1.18800
- 3000: $1.18800
FIXED IND 220NH 16.8A 4.6 MOHM
- 1: $1.18800
- 3000: $1.18800
FIXED IND 360NH 14.5A 6.3 MOHM
- 1: $1.18800
- 3000: $1.18800

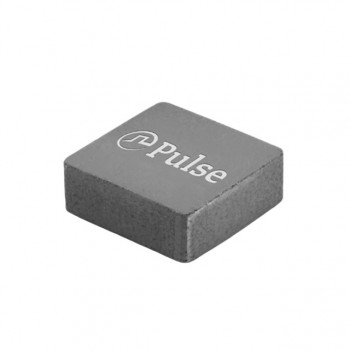

FIXED IND 560NH 12A 9.3MOHM SMD
