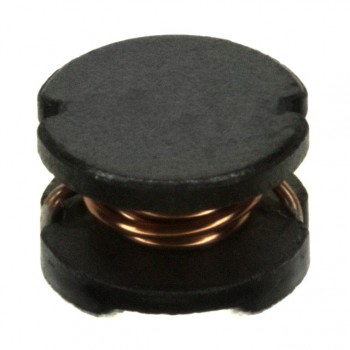

SD25-821-R
PowerStor (Eaton)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 820UH 230MA 5.04 OHM
- CategoryFixed Inductors
- Datasheet SD25-821-R Datasheet
-
ECAD Model
- Share
In Stock: 105
Can ship immediately
Pricing:
- 1$1.119
- 2,900$1.0755
Quote It
Technical Details
- Series:SD
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:820 µH
- Tolerance:±20%
- Current Rating (Amps):230 mA
- Current - Saturation (Isat):139mA
- Shielding:Shielded
- DC Resistance (DCR):5.04Ohm
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 85°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.205" L x 0.205" W (5.20mm x 5.20mm)
- Height - Seated (Max):0.098" (2.50mm)
