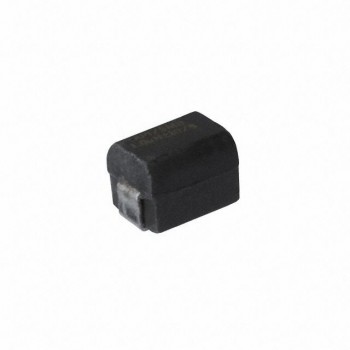

1812R-222G
API Delevan
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 2.2UH 535MA 700 MOHM
- CategoryFixed Inductors
- Datasheet 1812R-222G Datasheet
-
ECAD Model
- Share
In Stock: 145
Can ship immediately
Pricing:
- 1$2.4096
- 650$2.4096
Quote It
Technical Details
- Series:1812R
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:-
- Material - Core:Ferrite
- Inductance:2.2 µH
- Tolerance:±2%
- Current Rating (Amps):535 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):700mOhm Max
- Q @ Freq:50 @ 7.9MHz
- Frequency - Self Resonant:55MHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:7.9 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:2-SMD
- Supplier Device Package:-
- Size / Dimension:0.126" L x 0.126" W (3.20mm x 3.20mm)
- Height - Seated (Max):0.190" (4.83mm)
