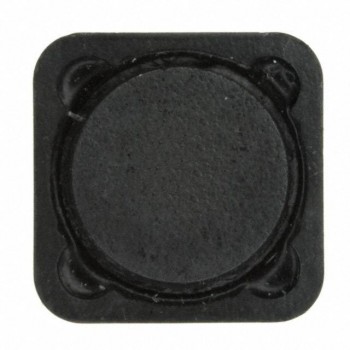

SPD125R-393M
API Delevan
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 39UH 2A 105 MOHM SMD
- CategoryFixed Inductors
- Datasheet SPD125R-393M Datasheet
-
ECAD Model
- Share
In Stock: 115
Can ship immediately
Pricing:
- 1$2.5056
- 500$2.5056
Quote It
Technical Details
- Series:SPD125R
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:39 µH
- Tolerance:±20%
- Current Rating (Amps):2 A
- Current - Saturation (Isat):2A
- Shielding:Shielded
- DC Resistance (DCR):105mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:1 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.472" L x 0.472" W (12.00mm x 12.00mm)
- Height - Seated (Max):0.236" (6.00mm)
