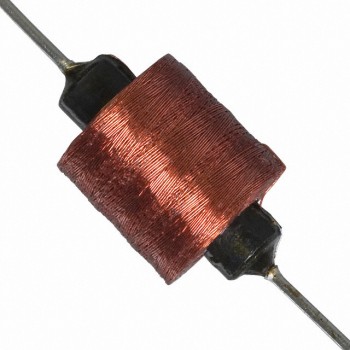

70F103AI
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 1MH 79MA 24 OHM TH
- CategoryFixed Inductors
- Datasheet 70F103AI Datasheet
-
ECAD Model
- Share
In Stock: 106
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:70F
- Package:Bulk
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Iron
- Inductance:1 mH
- Tolerance:±5%
- Current Rating (Amps):79 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):24Ohm Max
- Q @ Freq:30 @ 790kHz
- Frequency - Self Resonant:1.4MHz
- Ratings:-
- Operating Temperature:-55°C ~ 105°C
- Inductance Frequency - Test:790 kHz
- Features:-
- Mounting Type:Through Hole
- Package / Case:Axial
- Supplier Device Package:-
- Size / Dimension:0.220" Dia x 0.250" L (5.59mm x 6.35mm)
- Height - Seated (Max):-
