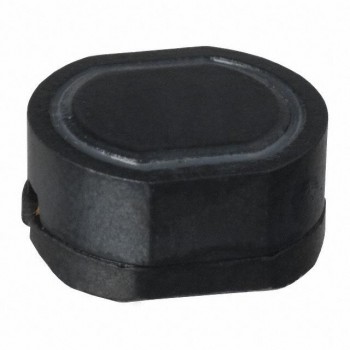

PM105-821K
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 820UH 240MA 2.55OHM SM
- CategoryFixed Inductors
- Datasheet PM105-821K Datasheet
-
ECAD Model
- Share
In Stock: 180
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:PM105
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:820 µH
- Tolerance:±10%
- Current Rating (Amps):240 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):2.55Ohm
- Q @ Freq:-
- Frequency - Self Resonant:2MHz
- Ratings:-
- Operating Temperature:-30°C ~ 100°C
- Inductance Frequency - Test:1 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.386" L x 0.386" W (9.80mm x 9.80mm)
- Height - Seated (Max):0.228" (5.80mm)
