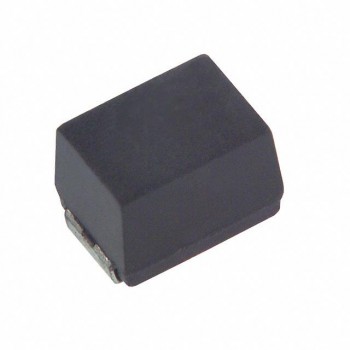

ELJ-PB220KF
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 22UH 300MA 1 OHM SMD
- CategoryFixed Inductors
- Datasheet ELJ-PB220KF Datasheet
-
ECAD Model
- Share
In Stock: 141
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:PB
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:-
- Inductance:22 µH
- Tolerance:±10%
- Current Rating (Amps):300 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):1Ohm Max
- Q @ Freq:10 @ 2.52MHz
- Frequency - Self Resonant:13MHz
- Ratings:-
- Operating Temperature:-20°C ~ 85°C
- Inductance Frequency - Test:2.52 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:1812 (4532 Metric)
- Supplier Device Package:1812
- Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
- Height - Seated (Max):0.134" (3.40mm)
