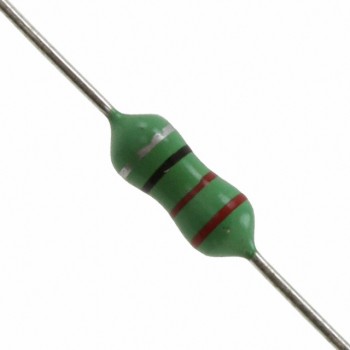

77F6R8K

Technical Details

• Series:77F
• Package:Bulk
• Part Status:Obsolete
• Type:Wirewound
• Material - Core:Ferrite
• Inductance:6.8 µH
• Tolerance:±10%
• Current Rating (Amps):550 mA
• Current - Saturation (Isat):-
• Shielding:Unshielded
• DC Resistance (DCR):480mOhm Max

• Q @ Freq:75 @ 7.96MHz
• Frequency - Self Resonant:68MHz
• Ratings:-
• Operating Temperature:-55°C ~ 105°C
• Inductance Frequency - Test:7.96 MHz
• Features:-
• Mounting Type:Through Hole
• Package / Case:Axial
• Supplier Device Package:-
• Size / Dimension:0.157" Dia x 0.410" L (3.99mm x 10.41mm)
• Height - Seated (Max):-
