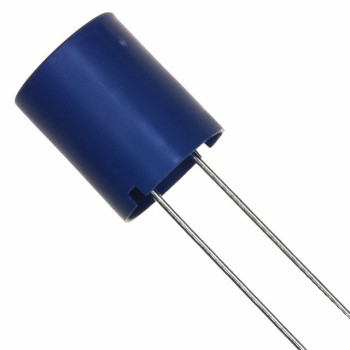

TSL1315RA-471K1R1-PF
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 470UH 1.1A 430 MOHM TH
- CategoryFixed Inductors
- Datasheet TSL1315RA-471K1R1-PF Datasheet
-
ECAD Model
- Share
In Stock: 108
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:TSL
- Package:Cut Tape (CT)Tape & Box (TB)
- Part Status:Obsolete
- Type:-
- Material - Core:-
- Inductance:470 µH
- Tolerance:±10%
- Current Rating (Amps):1.1 A
- Current - Saturation (Isat):1.8A
- Shielding:Unshielded
- DC Resistance (DCR):430mOhm Max
- Q @ Freq:30 @ 796kHz
- Frequency - Self Resonant:1.5MHz
- Ratings:-
- Operating Temperature:-20°C ~ 85°C
- Inductance Frequency - Test:1 kHz
- Features:-
- Mounting Type:Through Hole
- Package / Case:Radial, Vertical Cylinder
- Supplier Device Package:-
- Size / Dimension:0.551" Dia (14.00mm)
- Height - Seated (Max):0.669" (17.00mm)
