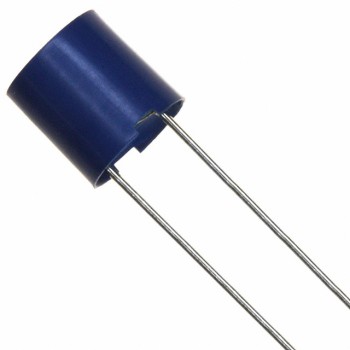

TSL1315RA-222JR55-PF
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 2.2MH 550MA 2 OHM TH
- CategoryFixed Inductors
- Datasheet TSL1315RA-222JR55-PF Datasheet
-
ECAD Model
- Share
In Stock: 119
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:TSL
- Package:Cut Tape (CT)Tape & Box (TB)
- Part Status:Obsolete
- Type:-
- Material - Core:-
- Inductance:2.2 mH
- Tolerance:±5%
- Current Rating (Amps):550 mA
- Current - Saturation (Isat):830mA
- Shielding:Unshielded
- DC Resistance (DCR):2Ohm Max
- Q @ Freq:40 @ 252kHz
- Frequency - Self Resonant:700kHz
- Ratings:-
- Operating Temperature:-20°C ~ 85°C
- Inductance Frequency - Test:1 kHz
- Features:-
- Mounting Type:Through Hole
- Package / Case:Radial, Vertical Cylinder
- Supplier Device Package:-
- Size / Dimension:0.551" Dia (14.00mm)
- Height - Seated (Max):0.669" (17.00mm)
