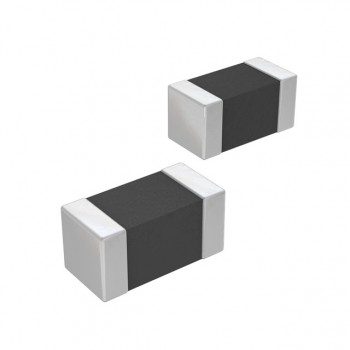

CM100505-1N0DL
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 1NH 400MA 50 MOHM SMD
- CategoryFixed Inductors
- Datasheet CM100505-1N0DL Datasheet
-
ECAD Model
- Share
In Stock: 159
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:CM100505
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Alumina
- Inductance:1 nH
- Tolerance:±0.3nH
- Current Rating (Amps):400 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):50mOhm Max
- Q @ Freq:8 @ 100MHz
- Frequency - Self Resonant:6GHz
- Ratings:-
- Operating Temperature:-40°C ~ 100°C
- Inductance Frequency - Test:100 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0402 (1005 Metric)
- Supplier Device Package:0402 (1005 Metric)
- Size / Dimension:0.039" L x 0.020" W (1.00mm x 0.50mm)
- Height - Seated (Max):0.024" (0.60mm)
