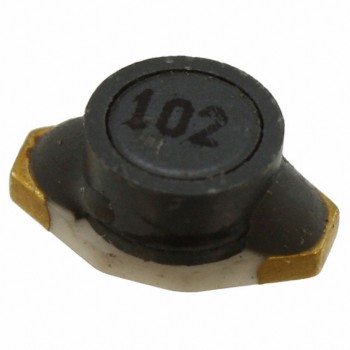

SRE6603-1R5M

Technical Details

• Series:SRE6603
• Package:Tape & Reel (TR)
• Part Status:Obsolete
• Type:Wirewound
• Material - Core:Ferrite
• Inductance:1.5 µH
• Tolerance:±20%
• Current Rating (Amps):2.8 A
• Current - Saturation (Isat):930mA
• Shielding:Shielded
• DC Resistance (DCR):45mOhm Max

• Q @ Freq:30 @ 200kHz
• Frequency - Self Resonant:125MHz
• Ratings:-
• Operating Temperature:-25°C ~ 105°C
• Inductance Frequency - Test:100 kHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:Nonstandard
• Supplier Device Package:-
• Size / Dimension:0.260" L x 0.175" W (6.60mm x 4.45mm)
• Height - Seated (Max):0.115" (2.92mm)
