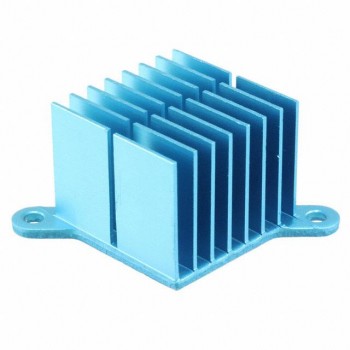

ATS-FPX030030025-82-C3-R0
Advanced Thermal Solutions, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionHEATSINK 30X30X25MM R-TAB FP
- CategoryThermal - Heat Sinks
- Datasheet ATS-FPX030030025-82-C3-R0 Datasheet
-
ECAD Model
- Share
In Stock: 199
Can ship immediately
Pricing:
- 1$4.03
- 10$3.93117
- 25$3.83042
- 50$3.62911
- 100$3.42742
- 250$3.22584
- 500$3.12504
- 1,000$2.82262
Quote It
Technical Details
- Series:pushPIN™
- Package:Tray
- Part Status:Active
- Type:Top Mount
- Package Cooled:Assorted (BGA, LGA, CPU, ASIC...)
- Attachment Method:Push Pin
- Shape:Square, Fins
- Length:1.181" (30.00mm)
- Width:1.181" (30.00mm)
- Diameter:-
- Fin Height:0.984" (25.00mm)
- Power Dissipation @ Temperature Rise:-
- Thermal Resistance @ Forced Air Flow:10.97°C/W @ 100 LFM
- Thermal Resistance @ Natural:-
- Material:Aluminum
- Material Finish:Blue Anodized
