EMZF500ADA101MJA0G
United Chemi-Con
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 100UF 20% 50V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet EMZF500ADA101MJA0G Datasheet
-
ECAD Model
- Share
In Stock: 2,469
Can ship immediately
Pricing:
- 1$1.45
- 500$0.6166
- 1,000$0.54405
- 2,500$0.50778
- 5,000$0.48965
- 12,500$0.46244
Quote It
Technical Details
- Series:Alchip™- MZF
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:100 µF
- Tolerance:±20%
- Voltage - Rated:50 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:10000 Hrs @ 105°C
- Operating Temperature:-25°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:268 mA @ 120 Hz
- Ripple Current @ High Frequency:670 mA @ 100 kHz
- Impedance:350 mOhms
- Lead Spacing:-
- Size / Dimension:0.394" Dia (10.00mm)
- Height - Seated (Max):0.413" (10.50mm)
- Surface Mount Land Size:0.406" L x 0.406" W (10.30mm x 10.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
Related Products

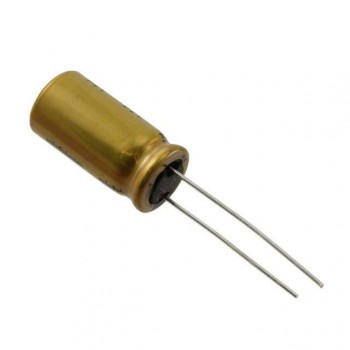

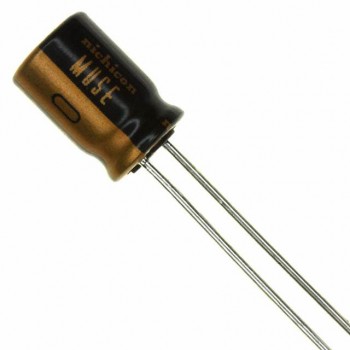

CAP ALUM 100UF 20% 50V TH
