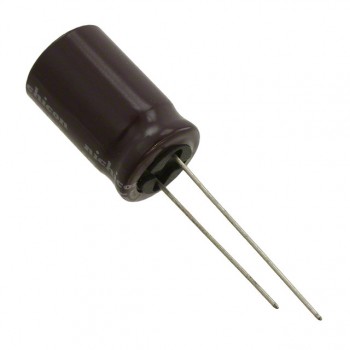

EKZE500ELL331MJ25S
United Chemi-Con
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 330UF 20% 50V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet EKZE500ELL331MJ25S Datasheet
-
ECAD Model
- Share
In Stock: 1,748
Can ship immediately
Pricing:
- 1$1.11
- 10$0.83791
- 100$0.59195
- 500$0.48022
- 1,000$0.4132
- 2,500$0.39087
- 5,000$0.36853
Quote It
Technical Details
- Series:KZE
- Package:Bulk
- Part Status:Active
- Capacitance:330 µF
- Tolerance:±20%
- Voltage - Rated:50 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:4000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:935 mA @ 120 Hz
- Ripple Current @ High Frequency:1.87 A @ 100 kHz
- Impedance:28 mOhms
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.394" Dia (10.00mm)
- Height - Seated (Max):0.984" (25.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
