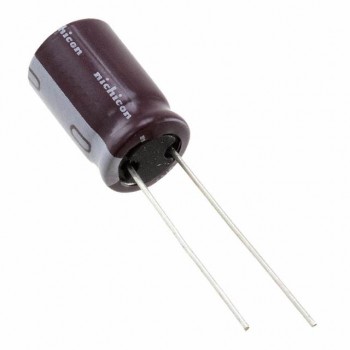

URZ1C331MPD1TD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 330UF 20% 16V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet URZ1C331MPD1TD Datasheet
-
ECAD Model
- Share
In Stock: 1,855
Can ship immediately
Pricing:
- 1$0.62
- 500$0.17717
- 1,000$0.1506
- 2,500$0.14174
- 5,000$0.13288
- 12,500$0.1218
- 25,000$0.12048
Quote It
Technical Details
- Series:URZ
- Package:Cut Tape (CT)Tape & Box (TB)
- Part Status:Active
- Capacitance:330 µF
- Tolerance:±20%
- Voltage - Rated:16 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:1000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:240 mA @ 120 Hz
- Ripple Current @ High Frequency:360 mA @ 10 kHz
- Impedance:-
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.394" Dia (10.00mm)
- Height - Seated (Max):0.413" (10.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
