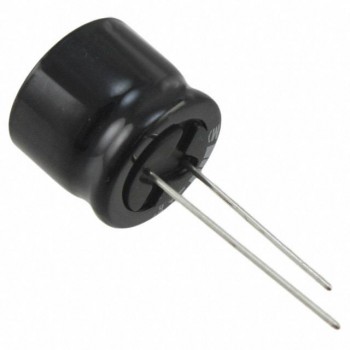

B41851A9227M000
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 220UF 20% 100V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet B41851A9227M000 Datasheet
-
ECAD Model
- Share
In Stock: 3,104
Can ship immediately
Pricing:
- 1$1.16
- 10$0.88321
- 100$0.6318
- 500$0.48913
- 1,000$0.42119
- 2,500$0.39402
- 5,000$0.37365
Quote It
Technical Details
- Series:B41851
- Package:Bulk
- Part Status:Not For New Designs
- Capacitance:220 µF
- Tolerance:±20%
- Voltage - Rated:100 V
- ESR (Equivalent Series Resistance):750mOhm @ 120Hz
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:435 mA @ 120 Hz
- Ripple Current @ High Frequency:-
- Impedance:-
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.492" Dia (12.50mm)
- Height - Seated (Max):1.063" (27.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
