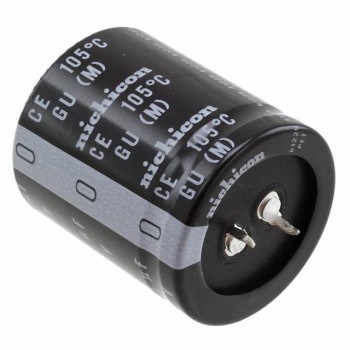

LGU1H103MELC
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 10000UF 20% 50V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet LGU1H103MELC Datasheet
-
ECAD Model
- Share
In Stock: 1,099
Can ship immediately
Pricing:
- 1$6.41
- 10$5.7732
- 100$4.36164
- 500$3.59195
- 1,000$3.48933
Quote It
Technical Details
- Series:LGU
- Package:Bulk
- Part Status:Active
- Capacitance:10000 µF
- Tolerance:±20%
- Voltage - Rated:50 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:3000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:4.07 A @ 120 Hz
- Ripple Current @ High Frequency:4.6805 A @ 50 kHz
- Impedance:-
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:1.378" Dia (35.00mm)
- Height - Seated (Max):1.654" (42.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
