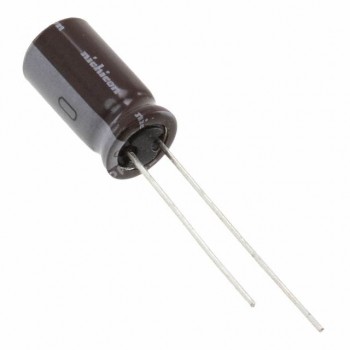

UPM0J122MPD1TD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 1200UF 20% 6.3V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UPM0J122MPD1TD Datasheet
-
ECAD Model
- Share
In Stock: 2,533
Can ship immediately
Pricing:
- 1$0.72
- 500$0.20557
- 1,000$0.17473
- 2,500$0.16445
- 5,000$0.15417
- 12,500$0.14133
- 25,000$0.13876
- 50,000$0.13362
Quote It
Technical Details
- Series:UPM
- Package:Cut Tape (CT)Tape & Box (TB)
- Part Status:Active
- Capacitance:1200 µF
- Tolerance:±20%
- Voltage - Rated:6.3 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:930 mA @ 120 Hz
- Ripple Current @ High Frequency:1.06 A @ 10 kHz
- Impedance:65 mOhms
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.394" Dia (10.00mm)
- Height - Seated (Max):0.866" (22.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
