UCY2D270MPD1TD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant

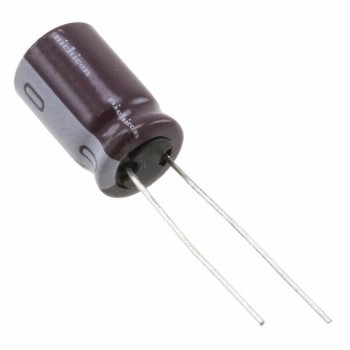

- DescriptionCAP ALUM 27UF 20% 200V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UCY2D270MPD1TD Datasheet
-
ECAD Model
- Share
In Stock: 1,659
Can ship immediately
Pricing:
- 1$0.94
- 500$0.31225
- 1,000$0.26295
- 2,500$0.24651
- 5,000$0.23008
- 12,500$0.22351
Quote It
Technical Details
- Series:UCY
- Package:Cut Tape (CT)Tape & Box (TB)
- Part Status:Active
- Capacitance:27 µF
- Tolerance:±20%
- Voltage - Rated:200 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:12000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:235 mA @ 120 Hz
- Ripple Current @ High Frequency:470 mA @ 100 kHz
- Impedance:-
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.394" Dia (10.00mm)
- Height - Seated (Max):0.689" (17.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
