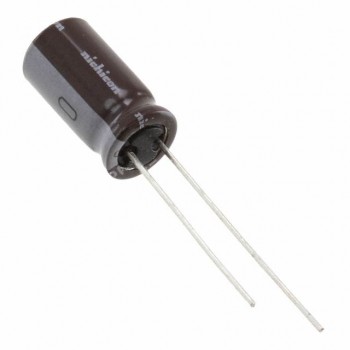

UCS2C470MPD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 47UF 20% 160V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UCS2C470MPD Datasheet
-
ECAD Model
- Share
In Stock: 1,036
Can ship immediately
Pricing:
- 1$0.78
- 10$0.57467
- 100$0.39367
- 500$0.31166
- 1,000$0.26244
- 2,500$0.24604
- 5,000$0.22964
Quote It
Technical Details
- Series:UCS
- Package:Bulk
- Part Status:Active
- Capacitance:47 µF
- Tolerance:±20%
- Voltage - Rated:160 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:8000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:375 mA @ 120 Hz
- Ripple Current @ High Frequency:750 mA @ 100 kHz
- Impedance:-
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.394" Dia (10.00mm)
- Height - Seated (Max):0.846" (21.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
