UWZ1A471MCL1GS
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 470UF 20% 10V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet UWZ1A471MCL1GS Datasheet
-
ECAD Model
- Share
In Stock: 1,173
Can ship immediately
Pricing:
- 1$0.63
- 500$0.19824
- 1,000$0.1685
- 2,500$0.15859
- 5,000$0.14868
- 12,500$0.13629
- 25,000$0.1348
Quote It
Technical Details
- Series:UWZ
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:470 µF
- Tolerance:±20%
- Voltage - Rated:10 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:1000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:High Temperature Reflow
- Ripple Current @ Low Frequency:210 mA @ 120 Hz
- Ripple Current @ High Frequency:315 mA @ 10 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:0.315" Dia (8.00mm)
- Height - Seated (Max):0.394" (10.00mm)
- Surface Mount Land Size:0.327" L x 0.327" W (8.30mm x 8.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
Related Products

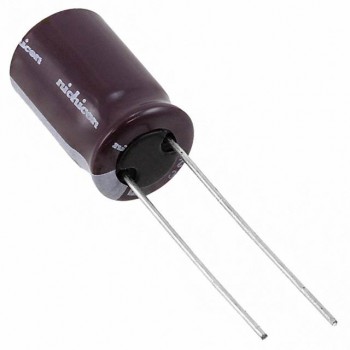

CAP ALUM 470UF 20% 16V THRU HOLE
