EEU-FC1C562

Panasonic
In Stock: 234

Can ship immediately

Pricing:
  • 1$2.41
  • 10$1.94522
  • 100$1.48502
  • 500$1.13146
  • 1,000$0.99003
  • 2,500$0.96174

Quote It

Technical Details

  • Series:FC
  • Package:Bulk
  • Part Status:Active
  • Capacitance:5600 µF
  • Tolerance:±20%
  • Voltage - Rated:16 V
  • ESR (Equivalent Series Resistance):-
  • Lifetime @ Temp.:5000 Hrs @ 105°C
  • Operating Temperature:-55°C ~ 105°C
  • Polarization:Polar
  • Ratings:AEC-Q200



  • Applications:Automotive
  • Ripple Current @ Low Frequency:3.09 A @ 120 Hz
  • Ripple Current @ High Frequency:3.635 A @ 100 kHz
  • Impedance:16 mOhms
  • Lead Spacing:0.295" (7.50mm)
  • Size / Dimension:0.709" Dia (18.00mm)
  • Height - Seated (Max):1.240" (31.50mm)
  • Surface Mount Land Size:-
  • Mounting Type:Through Hole
  • Package / Case:Radial, Can

Related Products


UPM1J102MHD6

CAP ALUM 1000UF 20% 63V RADIAL

UPM1J102MHD6 Datasheet
  • 1: $2.41000
  • 10: $1.94636
  • 100: $1.48605

UCY2D151MHD6

CAP ALUM 150UF 20% 200V RADIAL

UCY2D151MHD6 Datasheet
  • 1: $2.41000
  • 10: $1.95222
  • 100: $1.49120

UBY1J951MHL

63V 950UF 20% HIGH TEMP LEADED

UBY1J951MHL Datasheet
  • 1: $2.42000
  • 10: $1.95690
  • 100: $1.49435

UPJ1J122MHD

CAP ALUM 1200UF 20% 63V RADIAL

UPJ1J122MHD Datasheet
  • 1: $2.42000
  • 10: $1.96134
  • 100: $1.49799

UBY1V222MHL

CAP ALUM 2200UF 20% 35V RADIAL

UBY1V222MHL Datasheet
  • 1: $2.43000
  • 10: $1.96425
  • 100: $1.50002

EKY-6R3ELL103MM25S

CAP ALUM 10000UF 20% 6.3V RADIAL

EKY-6R3ELL103MM25S Datasheet
  • 1: $2.44000
  • 10: $1.96391
  • 100: $1.51012

UVP1C332MHD

CAP ALUM 3300UF 20% 16V RADIAL

UVP1C332MHD Datasheet
  • 1: $2.44000
  • 10: $1.97349
  • 100: $1.50698

UHW1K681MHD6

80V 681UF 20% HIGH RELIA-LEADED

UHW1K681MHD6 Datasheet
  • 1: $2.44000
  • 10: $1.97739
  • 100: $1.50960

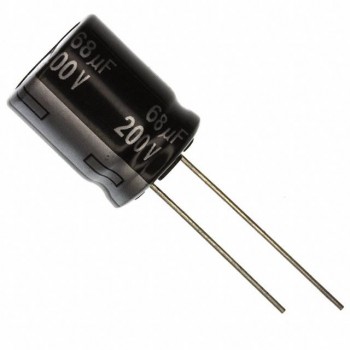

EEU-EE2V680

CAP ALUM 68UF 20% 350V RADIAL

EEU-EE2V680 Datasheet
  • 1: $2.44000
  • 10: $1.97617
  • 100: $1.50912

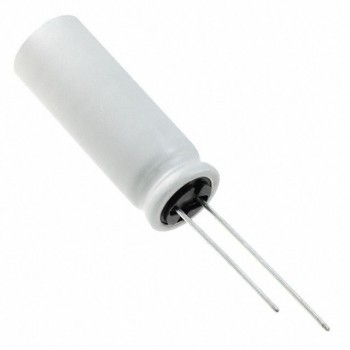

UBY1H132MHL
