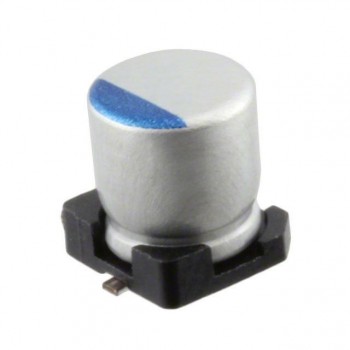

EEE-TC1A331P
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 330UF 20% 10V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet EEE-TC1A331P Datasheet
-
ECAD Model
- Share
In Stock: 1,107
Can ship immediately
Pricing:
- 1$1.05
- 500$0.40027
- 1,000$0.34468
- 2,500$0.32244
- 5,000$0.30576
- 12,500$0.28975
- 25,000$0.28352
Quote It
Technical Details
- Series:TC
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:330 µF
- Tolerance:±20%
- Voltage - Rated:10 V
- ESR (Equivalent Series Resistance):150mOhm @ 100kHz
- Lifetime @ Temp.:3000 Hrs @ 125°C
- Operating Temperature:-40°C ~ 125°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive, High Temperature Reflow
- Ripple Current @ Low Frequency:487.5 mA @ 120 Hz
- Ripple Current @ High Frequency:750 mA @ 100 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:0.394" Dia (10.00mm)
- Height - Seated (Max):0.413" (10.50mm)
- Surface Mount Land Size:0.406" L x 0.406" W (10.30mm x 10.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
