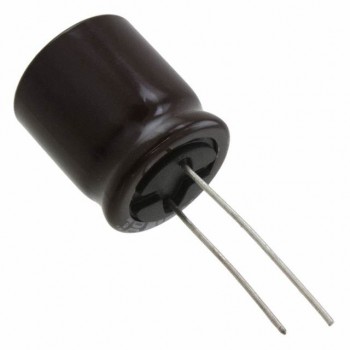

UPJ1H102MHD6TN
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 1000UF 20% 50V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UPJ1H102MHD6TN Datasheet
-
ECAD Model
- Share
In Stock: 586
Can ship immediately
Pricing:
- 1$1.61
- 250$0.76883
- 500$0.65351
- 750$0.61506
- 1,250$0.57662
- 2,500$0.53818
- 6,250$0.51896
- 12,500$0.49013
Quote It
Technical Details
- Series:UPJ
- Package:Cut Tape (CT)Tape & Box (TB)
- Part Status:Active
- Capacitance:1000 µF
- Tolerance:±20%
- Voltage - Rated:50 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:1.73 A @ 120 Hz
- Ripple Current @ High Frequency:2 A @ 10 kHz
- Impedance:36 mOhms
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.709" Dia (18.00mm)
- Height - Seated (Max):1.063" (27.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
