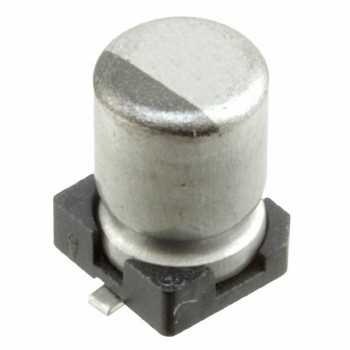

UUD1A151MCL1GS
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 150UF 20% 10V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet UUD1A151MCL1GS Datasheet
-
ECAD Model
- Share
In Stock: 126
Can ship immediately
Pricing:
- 1$0.4
- 1,000$0.096
- 2,000$0.09095
- 5,000$0.08589
- 10,000$0.08084
- 25,000$0.07579
- 50,000$0.07074
- 100,000$0.06872
Quote It
Technical Details
- Series:UUD
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:150 µF
- Tolerance:±20%
- Voltage - Rated:10 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:115 mA @ 120 Hz
- Ripple Current @ High Frequency:230 mA @ 100 kHz
- Impedance:440 mOhms
- Lead Spacing:-
- Size / Dimension:0.248" Dia (6.30mm)
- Height - Seated (Max):0.228" (5.80mm)
- Surface Mount Land Size:0.260" L x 0.260" W (6.60mm x 6.60mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
