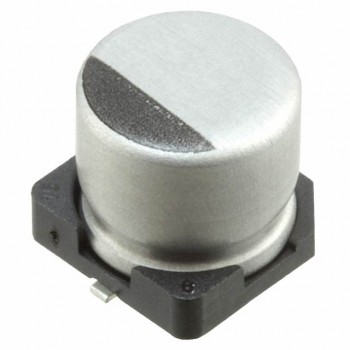

UCD1J220MCL1GS
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 22UF 20% 63V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet UCD1J220MCL1GS Datasheet
-
ECAD Model
- Share
In Stock: 581
Can ship immediately
Pricing:
- 1$0.52
- 900$0.14733
- 1,800$0.13914
- 2,700$0.13096
- 4,500$0.12277
- 9,000$0.11459
- 22,500$0.11254
- 45,000$0.1105
- 90,000$0.1064
Quote It
Technical Details
- Series:UCD
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:22 µF
- Tolerance:±20%
- Voltage - Rated:63 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive
- Ripple Current @ Low Frequency:60 mA @ 120 Hz
- Ripple Current @ High Frequency:120 mA @ 100 kHz
- Impedance:1.2 Ohms
- Lead Spacing:-
- Size / Dimension:0.248" Dia (6.30mm)
- Height - Seated (Max):0.315" (8.00mm)
- Surface Mount Land Size:0.260" L x 0.260" W (6.60mm x 6.60mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
