EEU-FM1E102B
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 1000UF 20% 25V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet EEU-FM1E102B Datasheet
-
ECAD Model
- Share
In Stock: 282
Can ship immediately
Pricing:
- 1$0.92
- 500$0.35265
- 1,000$0.30367
- 2,500$0.28408
- 5,000$0.26939
- 12,500$0.25528
- 25,000$0.2498
Quote It
Technical Details
- Series:FM
- Package:Cut Tape (CT)Tape & Box (TB)
- Part Status:Active
- Capacitance:1000 µF
- Tolerance:±20%
- Voltage - Rated:25 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:1.95 A @ 120 Hz
- Ripple Current @ High Frequency:2.6 A @ 100 kHz
- Impedance:18 mOhms
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.492" Dia (12.50mm)
- Height - Seated (Max):0.866" (22.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
Related Products

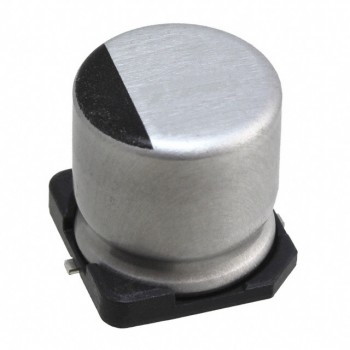

CAP ALUM 10UF 63VDC 20% SMD
