UPM1C222MHD6TN
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 2200UF 20% 16V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UPM1C222MHD6TN Datasheet
-
ECAD Model
- Share
In Stock: 345
Can ship immediately
Pricing:
- 1$1.38
- 250$0.65864
- 500$0.55984
- 750$0.52691
- 1,250$0.49398
- 2,500$0.46105
- 6,250$0.44787
Quote It
Technical Details
- Series:UPM
- Package:Cut Tape (CT)Tape & Box (TB)
- Part Status:Active
- Capacitance:2200 µF
- Tolerance:±20%
- Voltage - Rated:16 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:1.62 A @ 120 Hz
- Ripple Current @ High Frequency:1.8 A @ 10 kHz
- Impedance:33 mOhms
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.630" Dia (16.00mm)
- Height - Seated (Max):0.866" (22.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
Related Products

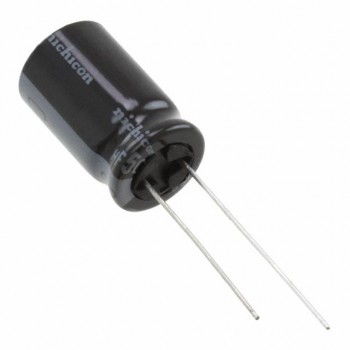

CAP 330 UF 20% 63 V
