EEE-FT1A151AR
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant

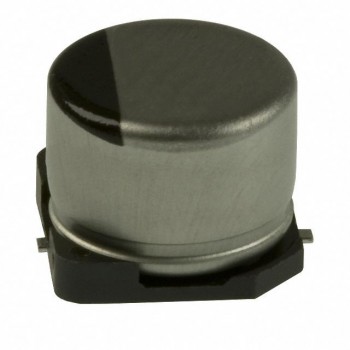

- DescriptionCAP ALUM 150UF 20% 10V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet EEE-FT1A151AR Datasheet
-
ECAD Model
- Share
In Stock: 216
Can ship immediately
Pricing:
- 1$0.5
- 1,000$0.13228
- 2,000$0.1245
- 5,000$0.11672
- 10,000$0.10894
- 25,000$0.10505
- 50,000$0.10116
- 100,000$0.09727
Quote It
Technical Details
- Series:FT
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:150 µF
- Tolerance:±20%
- Voltage - Rated:10 V
- ESR (Equivalent Series Resistance):360mOhm @ 100kHz
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive
- Ripple Current @ Low Frequency:156 mA @ 120 Hz
- Ripple Current @ High Frequency:240 mA @ 100 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:0.197" Dia (5.00mm)
- Height - Seated (Max):0.240" (6.10mm)
- Surface Mount Land Size:0.209" L x 0.209" W (5.30mm x 5.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
