EEU-FR1A102LB
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 1000UF 20% 10V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet EEU-FR1A102LB Datasheet
-
ECAD Model
- Share
In Stock: 214
Can ship immediately
Pricing:
- 1$0.62
- 1,000$0.1656
- 2,000$0.15586
- 5,000$0.14612
- 10,000$0.13638
- 25,000$0.13151
- 50,000$0.12664
Quote It
Technical Details
- Series:FR
- Package:Cut Tape (CT)Tape & Box (TB)
- Part Status:Active
- Capacitance:1000 µF
- Tolerance:±20%
- Voltage - Rated:10 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:8000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:930 mA @ 120 Hz
- Ripple Current @ High Frequency:1.24 A @ 100 kHz
- Impedance:41 mOhms
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.315" Dia (8.00mm)
- Height - Seated (Max):0.650" (16.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
Related Products

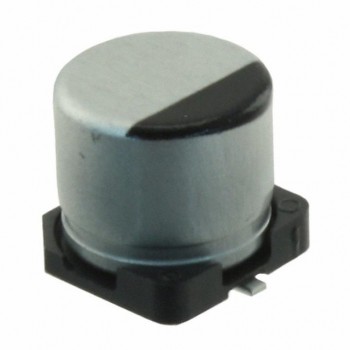

CAP ALUM 22UF 20% 50V SMD
