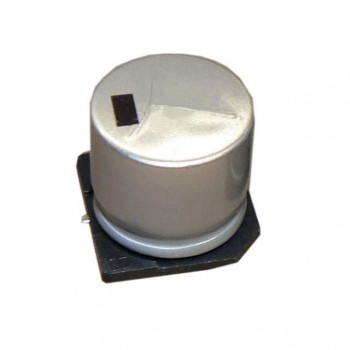

EEE-HD1H101P
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 100UF 20% 50V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet EEE-HD1H101P Datasheet
-
ECAD Model
- Share
In Stock: 292
Can ship immediately
Pricing:
- 1$0.95
- 500$0.34494
- 1,000$0.29047
- 2,500$0.27232
- 5,000$0.25416
- 12,500$0.24146
- 25,000$0.23601
Quote It
Technical Details
- Series:HD
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:100 µF
- Tolerance:±20%
- Voltage - Rated:50 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive, High Temperature Reflow
- Ripple Current @ Low Frequency:94 mA @ 120 Hz
- Ripple Current @ High Frequency:159.8 mA @ 10 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:0.394" Dia (10.00mm)
- Height - Seated (Max):0.413" (10.50mm)
- Surface Mount Land Size:0.406" L x 0.406" W (10.30mm x 10.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
