EEU-FR1C472
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 4700UF 20% 16V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet EEU-FR1C472 Datasheet
-
ECAD Model
- Share
In Stock: 154
Can ship immediately
Pricing:
- 1$2.16
- 10$1.70617
- 100$1.27968
- 500$0.96683
- 1,000$0.85309
- 2,500$0.79622
- 5,000$0.76778
Quote It
Technical Details
- Series:FR
- Package:Bulk
- Part Status:Active
- Capacitance:4700 µF
- Tolerance:±20%
- Voltage - Rated:16 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:10000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:3.056 A @ 120 Hz
- Ripple Current @ High Frequency:3.75 A @ 100 kHz
- Impedance:14 mOhms
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.630" Dia (16.00mm)
- Height - Seated (Max):1.063" (27.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
Related Products

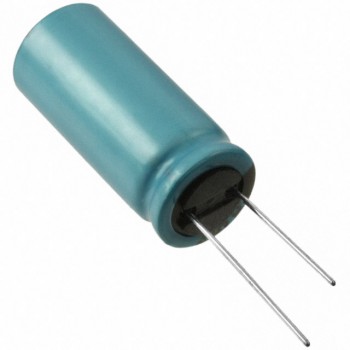

CAP ALUM 2200UF 20% 35V TH
