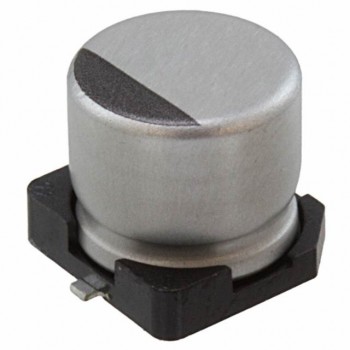

UUP1H4R7MCL1GS
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 4.7UF 20% 50V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet UUP1H4R7MCL1GS Datasheet
-
ECAD Model
- Share
In Stock: 206
Can ship immediately
Pricing:
- 1$0.74
- 1,000$0.19738
- 2,000$0.18577
- 5,000$0.17416
- 10,000$0.16255
- 25,000$0.1579
Quote It
Technical Details
- Series:UUP
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:4.7 µF
- Tolerance:±20%
- Voltage - Rated:50 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:1000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Bi-Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:20 mA @ 120 Hz
- Ripple Current @ High Frequency:30 mA @ 10 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:0.248" Dia (6.30mm)
- Height - Seated (Max):0.240" (6.10mm)
- Surface Mount Land Size:0.260" L x 0.260" W (6.60mm x 6.60mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
