EEE-HD1J100P
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 10UF 20% 63V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet EEE-HD1J100P Datasheet
-
ECAD Model
- Share
In Stock: 140
Can ship immediately
Pricing:
- 1$0.76
- 1,000$0.20265
- 2,000$0.19073
- 5,000$0.17881
- 10,000$0.16689
- 25,000$0.16212
Quote It
Technical Details
- Series:HD
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:10 µF
- Tolerance:±20%
- Voltage - Rated:63 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive, High Temperature Reflow
- Ripple Current @ Low Frequency:45 mA @ 120 Hz
- Ripple Current @ High Frequency:76.5 mA @ 10 kHz
- Impedance:2 Ohms
- Lead Spacing:-
- Size / Dimension:0.315" Dia (8.00mm)
- Height - Seated (Max):0.244" (6.20mm)
- Surface Mount Land Size:0.327" L x 0.327" W (8.30mm x 8.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
Related Products

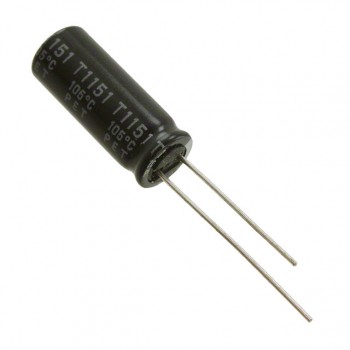

CAP ALUM 330UF 20% 35V RADIAL
