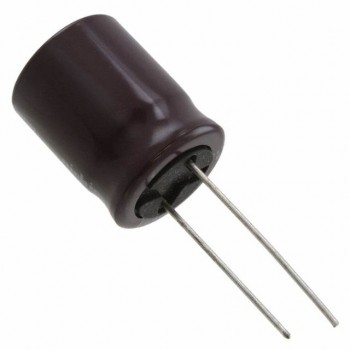

UHW1J821MHD6TN
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 820UF 20% 63V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UHW1J821MHD6TN Datasheet
-
ECAD Model
- Share
In Stock: 119
Can ship immediately
Pricing:
- 1$2.53
- 250$1.21942
- 500$1.08393
- 750$1.01618
- 1,250$0.94844
- 2,500$0.91456
- 6,250$0.88069
Quote It
Technical Details
- Series:UHW
- Package:Cut Tape (CT)Tape & Box (TB)
- Part Status:Active
- Capacitance:820 µF
- Tolerance:±20%
- Voltage - Rated:63 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:10000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:1.476 A @ 120 Hz
- Ripple Current @ High Frequency:2.46 A @ 100 kHz
- Impedance:47 mOhms
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.709" Dia (18.00mm)
- Height - Seated (Max):0.866" (22.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
