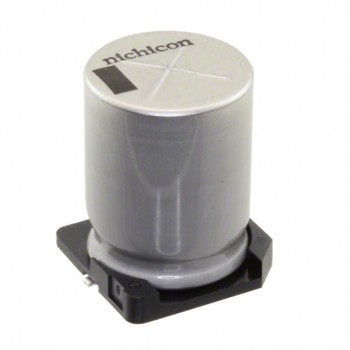

UCD1V681MNQ1MS
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 680UF 20% 35V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet UCD1V681MNQ1MS Datasheet
-
ECAD Model
- Share
In Stock: 134
Can ship immediately
Pricing:
- 1$2.28
- 200$1.22362
- 400$1.04883
- 600$0.93229
- 1,000$0.81576
- 2,000$0.78663
- 5,000$0.75749
- 10,000$0.75472
Quote It
Technical Details
- Series:UCD
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:680 µF
- Tolerance:±20%
- Voltage - Rated:35 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive
- Ripple Current @ Low Frequency:550 mA @ 120 Hz
- Ripple Current @ High Frequency:1.1 A @ 100 kHz
- Impedance:80 mOhms
- Lead Spacing:-
- Size / Dimension:0.492" Dia (12.50mm)
- Height - Seated (Max):0.571" (14.50mm)
- Surface Mount Land Size:0.535" L x 0.535" W (13.60mm x 13.60mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
Related Products

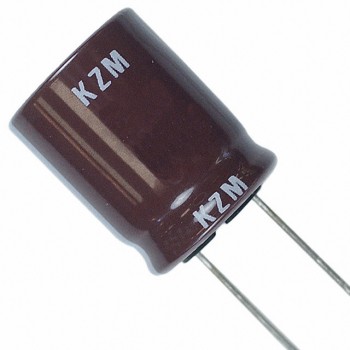

CAP 2200 UF 20% 25 V
